Featured Product Demonstrations

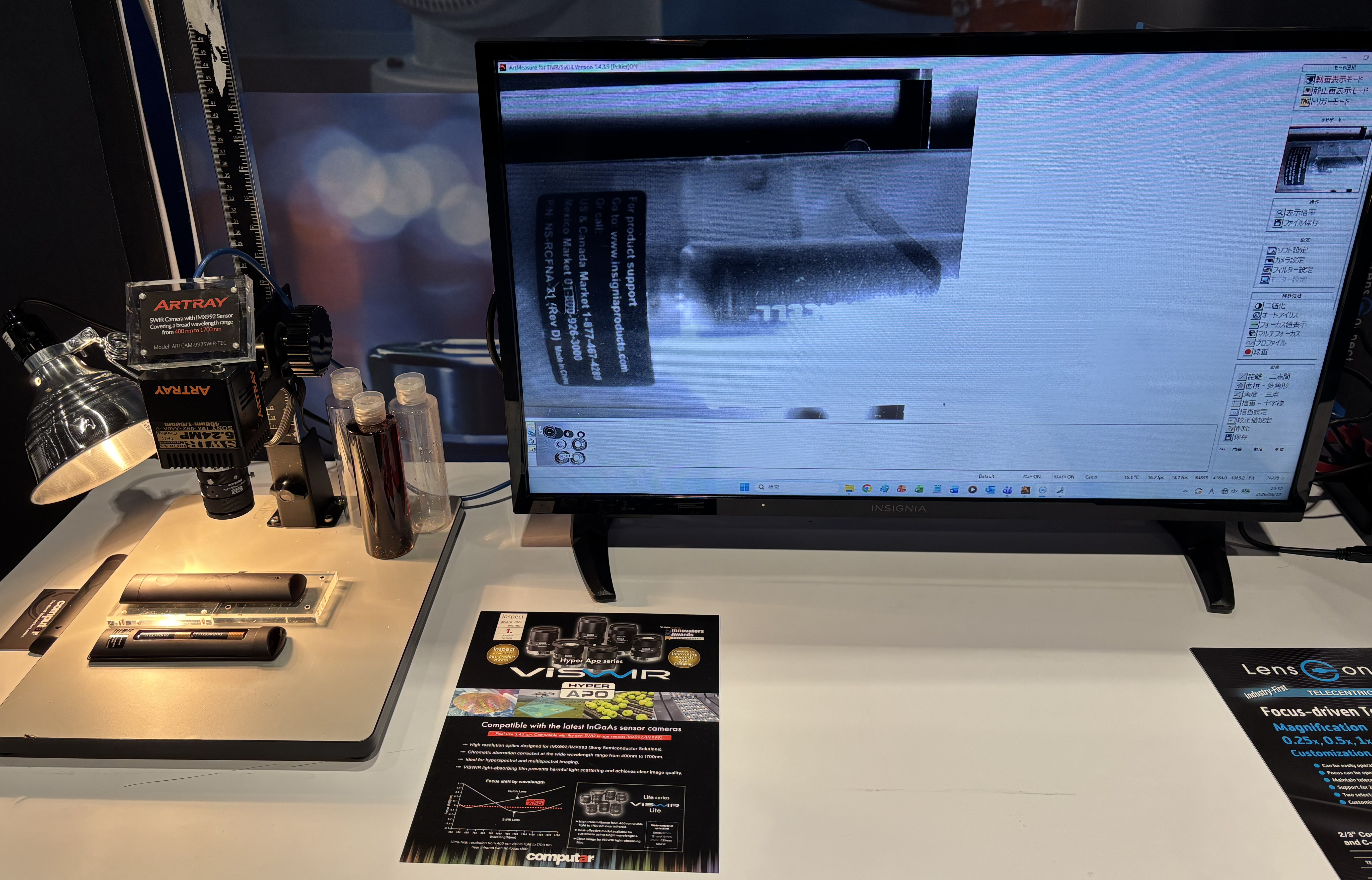

ComputarViSWIR HyperAPO & IMX992

Demonstration Overview

By combining HyperAPO lens with the IMX992 sensor, it is possible to perform inspections beyond the range of human vision. In this demonstration, we showed how this technology can see through the outer casing of a remote control and reveal the text inside.

HyperAPO is currently being considered for applications such as food inspection, pharmaceutical inspection and Semiconductor industries.

Product Features

ViSWIR HyperAPO series are ultra-high performance lenses that cover the entire spectrum from visible light to the SWIR band (800-1700 nm). This HyperAPO Series achieves high transmittance and high resolution without any focus shifting in multiple bands.

This ViSWIR HyperAPO series' APO floating design*, reduces the focus shift at any wavelength and any working distance. This function makes the series ideal for multiple applications, including machine vision, UAV, and remote sensing.

‍

ViSWIR HyperAPO Lens Series | Specs

LensConnect for Logistics & Retail

Demonstration Overview

In this demonstration, we showed how barcodes at different heights can be read by remotely controlling the lens focus.With LensConnect, QR codes at different heights and barcodes requiring high-resolution imaging can be read easily.

It also reduces Z-stage or robotic arm for focusing, making the system simple and easy to integrate.

Product Features

The LensConnect Series of motorized lenses are engineered to enable power supply and control through USB. This innovative Plug-and-Play lens series allows remote adjustments of the zoom*, focus, or iris and comes with a simple setup software compatible with Windows or Linux (*zoom adjustment for varifocal models only).

The lenses allow optimal management and inspection of inventory, enabling users to fulfill orders quickly and efficiently and the varifocal models are the only machine vision lens with optical zoom functionality.

‍

LensConnect Motorized Lens Series | Specs

LensConnect Telecentric for PCB Inspection

Demonstration Overview

In this demonstration, we showed a motorized telecentric lens designed for magnified inspection of small components such as electronic parts.

By using our LensConnect, the need for a Z-stage can be reduced, enabling a more compact system design and lower overall costs.The lens can also be easily controlled using dedicated software.

Product Features

The 2/3" format LensConnect Telecentric Lens Series is designed to meet the evolving demands of precision imaging applications across industrial inspection, machine vision, and quality assurance sectors. The TEC-ML series represents a significant advancement in telecentric lens technology, combining superior optical performance with unprecedented operational convenience through remote focus control and dual-interface connectivity.

LensConnect Telecentric Motorized Lens Series | Specs

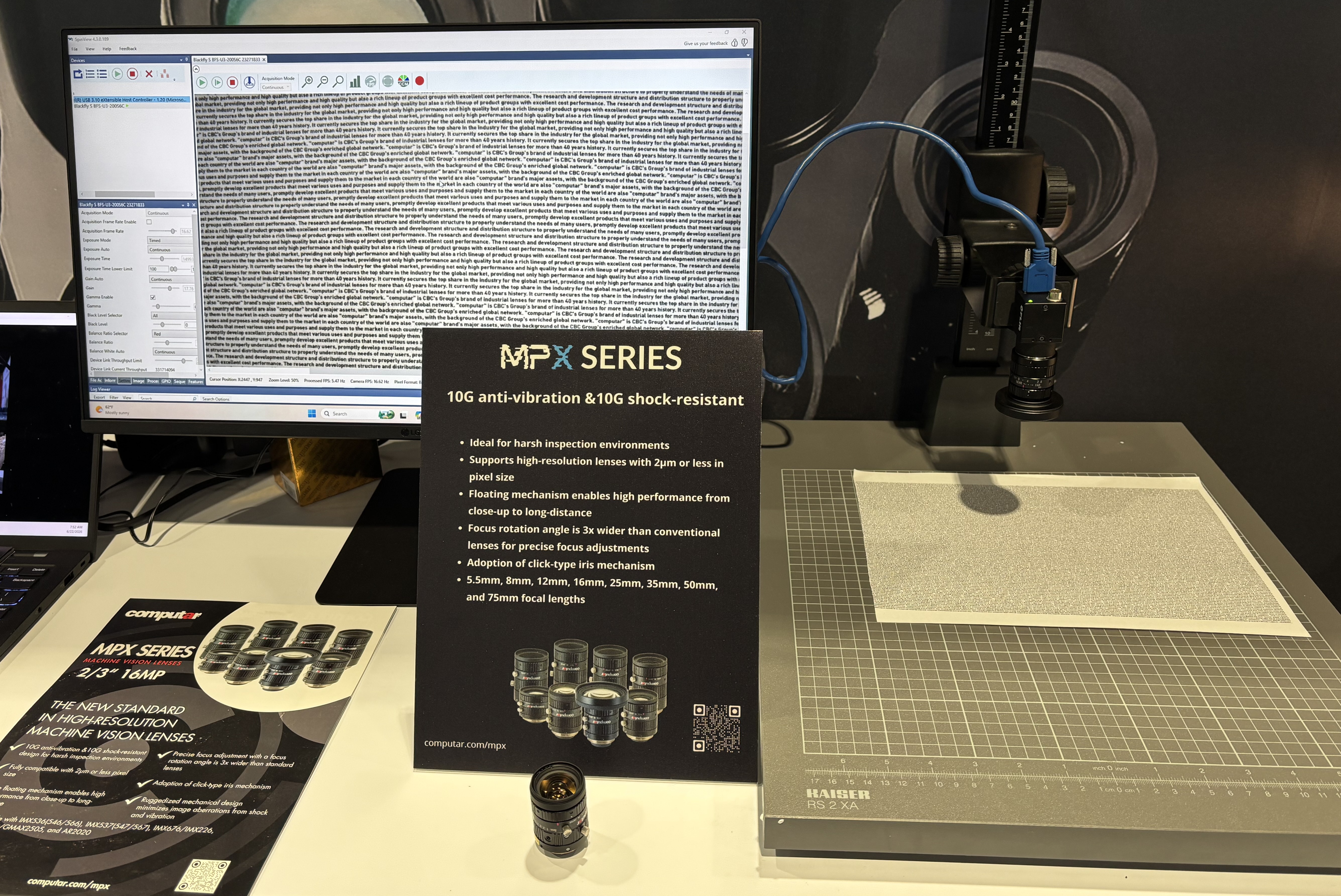

RUGGEDIZED OPTICS: ComputarMPX Series

Demonstration Overview

In this demonstration, we showed a 5.5 mm ultra-wide-angle lens capable of clearly capturing small text at close working distances.

Despite its ultra-wide 5.5 mm focal length, the lens achieves an extremely compact design with low distortion. It also offers excellent vibration resistance (10G), making it suitable for a wide range of applications.

Product Features

MPX Series of machine vision lenses is engineered for high-vibration, high-shock applications. Rated for 10G anti-vibration and 10G shock resistance, it holds steady performance in harsh inspection environments.

The series supports high-resolution sensors down to 2µm pixel size, with a floating mechanism that delivers strong performance from close-up to long distance.

A focus rotation angle three times wider than standard lenses enables precise adjustment, and a click-type iris mechanism adds repeatable control.

MPX Ruggedized 16 Megapixel Machine Vision Lenses | Specs

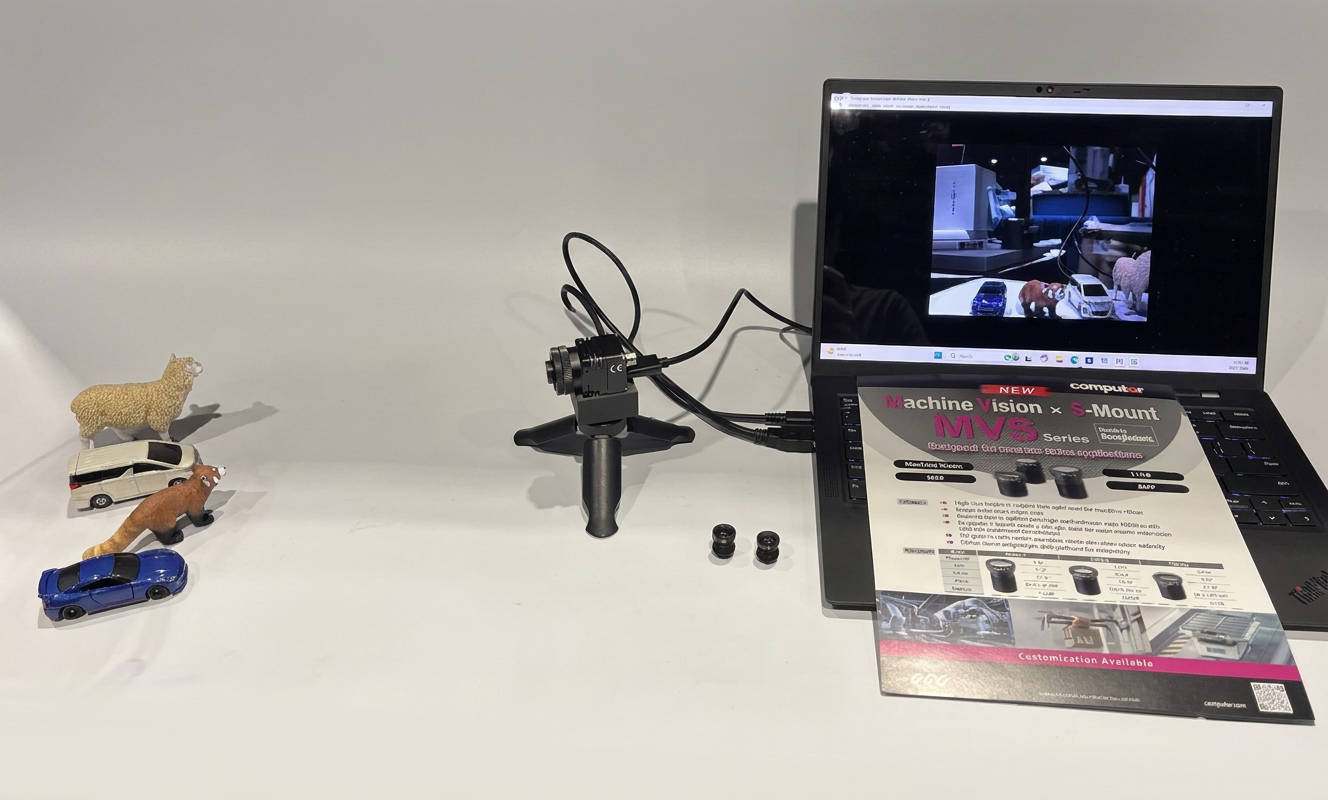

S-MOUNT OPTICS: Computar MVS Series

Demonstration Overview

In this demonstration, we showed an 8 mm wide-angle lens with excellent close-range performance and low distortion.

Its compact design makes it ideal for small vision modules used in applications such as robot vision and embedded vision.

Product Features

The MVS series is a compact M12 machine-vision lens line designed for 1/1.8" sensors at 8MP, with F2.8 optics and customization available.

Three focal lengths—E0828KY (8mm), E1228KY (12mm), and E1628KY (16mm)—all using an M12 × P0.5mm mount and offering very low distortion (about -0.20% to 0.29%), making them well-suited for precision imaging in industrial vision applications.

Another key feature is that the lens is manufactured in Bangladesh.

Computar MVS Series with S-mount Optics l Specs

Thank you for joining us at Automate 2026.

At the Automate 2026 trade show, Computar showcased a diverse range of industrial imaging lenses designed for advanced machine vision applications. The ViSWIR HyperAPO series utilizes short-wave infrared technology to perform non-invasive inspections through solid surfaces, while the LensConnect line offers remote, motorized control for logistics and precision circuit board analysis. To support operations in volatile environments, the MPX Series provides high-resolution imaging with significant resistance to shock and vibration. Additionally, the compact MVS Series delivers low-distortion, wide-angle views for specialized robotic and embedded vision modules.

Collectively, these innovations demonstrate a focus on automated precision, remote accessibility, and hardware durability across multiple industrial sectors.
