Telecentric Lens Series

Precision lenses delivering high-resolution with the lowest possible geometrical distortion.

Telecentric Lens Series

More About the

Telecentric Machine Vision Lens

FA

FA

Factory Automation Lens

TEL

Telecentric

A compound lens which has its entrance or exit pupil at infinity

C

C Mount

C Mount lens for use with C or CS mount cameras (5mm adapter required for CS mount camera)

2/3"

2/3"

2/3" Lens Format

1/1.1"

1/1.1"

1/1.1" Lens Format

5MP

5 Megapixel

HD lens used primarily with 5 megapixel cameras

2MP

2 Megapixel

HD lens used primarily with 2 megapixel cameras

Computar’s Telecentric lineup includes the well-known V-Series and M-Series featuring high-resolution operation with precise accuracy. Computar offers an extensive selection of models suitable for various sensor types, and almost any application.

New!

LensConnect Telecentric with remote focus control  and magnification 0.25X, 0.5X, 1X, and 2X

LensConnect Telecentric Lens Series, designed to meet the evolving demands of precision imaging applications across industrial inspection, machine vision, and quality assurance sectors.

The new TEC-ML series represents a significant advancement in telecentric lens technology, combining superior optical performance with unprecedented operational convenience through remote focus control and dual-interface connectivity.

Key Product Highlights:

The focus-driven LensConnect Telecentric Lens Series is available in four distinct magnification options—0.25×, 0.5×, 1.0×, and 2.0×—providing customers with versatile solutions tailored to specific application requirements. All models maintain a consistent F-number of 6.5, ensuring optimal light transmission and image quality across the entire product line.

Advanced Features:

  • Remote Focus Operation: Seamless I2C integration enables remote focus adjustment directly from compatible cameras, eliminating the need for manual adjustment and streamlining workflow efficiency
  • Telecentricity Preservation: Advanced optical design maintains perfect telecentricity even during focus position adjustments, ensuring accurate dimensional measurements and consistent image quality
  • Dual Interface Support: Flexible I2C/USB interface options accommodate diverse system configurations and integration requirements
  • High-Resolution Compatibility: Optimized for 2.74µ pixel size sensors, the lenses deliver exceptional resolution for detailed inspection and analysis
  • Customization Available: The series supports custom magnification specifications to address unique application needs

Telecentric Machine Vision Lens

Features

  • Compatible with Multiple sensor sizes (12MP sensors on 1.1” cameras, 5MP sensors on 1.1” cameras, and 2MP on 2/3" cameras - see individual lens specs below)
  • C-mount
  • Low TV distortion correction up to the outermost corner for optimal machine vision performance.
  • A wide variety of magnification options available
  • Coaxial models also available

Products

Please sign up for an account if you want to save items!

TEC-ML2071SC-MPW
TEC-ML2071SC-MPW
2/3" 2X Magnification, F6.5 Motorized Telecentric Lens

Please sign up for an account if you want to save items!

TEC-ML10110SC-MPW
TEC-ML10110SC-MPW
2/3" 1X Magnification, F6.5 Motorized Telecentric Lens

Please sign up for an account if you want to save items!

TEC-ML05132SC-MPW
TEC-ML05132SC-MPW
2/3" .5X Magnification, F6.5 Motorized Telecentric Lens

Please sign up for an account if you want to save items!

TEC-ML025139SC-MPW
TEC-ML025139SC-MPW
2/3" .25X Magnification, F6.5 Motorized Telecentric Lens

Please sign up for an account if you want to save items!

TEC-M55
TEC-M55
5MP, 2/3" 55mm F2.8 Telecentric Lens, (C Mount)

Please sign up for an account if you want to save items!

TEC-V7X
TEC-V7X
5MP, 1.1" 7x Macro Zoom Telecentric Lens (C-mount)

Please sign up for an account if you want to save items!

TEC-V1065MPW
TEC-V1065MPW
5MP, 1" 65mm, Telecentric Lens, 1.0x magnification (C-Mount)

Please sign up for an account if you want to save items!

TEC-V0565MPW
TEC-V0565MPW
5MP, 1" 65mm, Telecentric Lens, .5x magnification (C-Mount)

Please sign up for an account if you want to save items!

TEC-V10110MPW
TEC-V10110MPW
5MP, 1" 110mm, Telecentric Lens, 1.0x magnification (C-Mount)

Please sign up for an account if you want to save items!

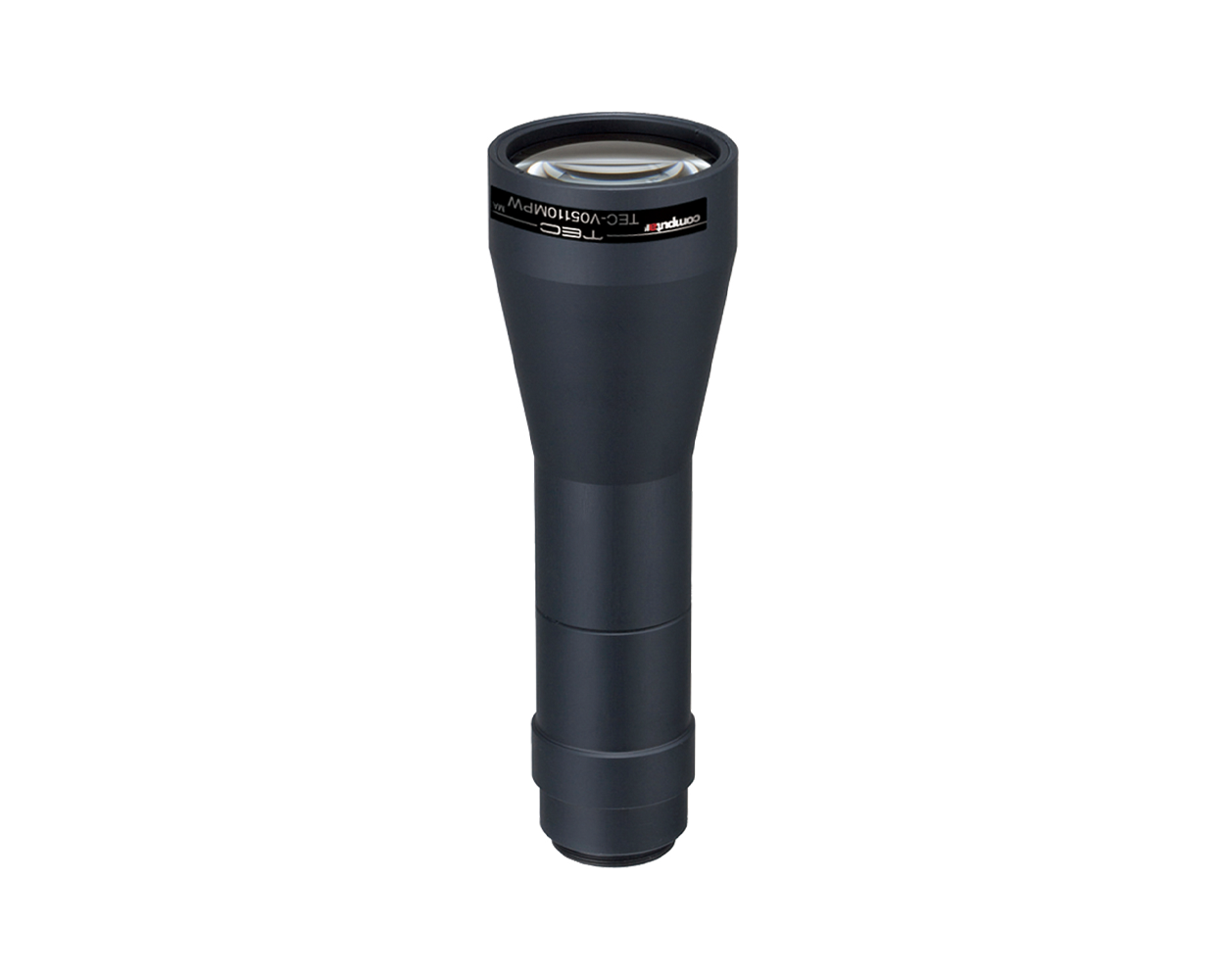

TEC-V05110MPW
TEC-V05110MPW
5MP, 1" 110mm, Telecentric Lens, .5x magnification (C-Mount)

Please sign up for an account if you want to save items!

TEC-V0345165MPY-WI
TEC-V0345165MPY-WI
12MP, 1.1" 165.2mm, Telecentric Lens, 0.345x magnification, Variable Iris (C Mount)

Please sign up for an account if you want to save items!

TEC-M6065MPC
TEC-M6065MPC
2MP, 2/3" 65mm, Telecentric Lens, 6.0x magnification (C-Mount) w/ coaxial

Please sign up for an account if you want to save items!

TEC-M6065MP
TEC-M6065MP
2MP, 2/3" 65mm, Telecentric Lens, 6.0x magnification (C-Mount)

Please sign up for an account if you want to save items!

TEC-M60110MPC
TEC-M60110MPC
2MP, 2/3" 110mm, Telecentric Lens, 6.0x magnification (C-Mount) w/ coaxial

Please sign up for an account if you want to save items!

TEC-M60110MP
TEC-M60110MP
2MP, 2/3" 110mm, Telecentric Lens, 6.0x magnification (C-Mount)

Please sign up for an account if you want to save items!

TEC-M55MPW
TEC-M55MPW
5MP, 2/3" 55mm Telecentric Lens, 0.5x magnification (C Mount)

Please sign up for an account if you want to save items!

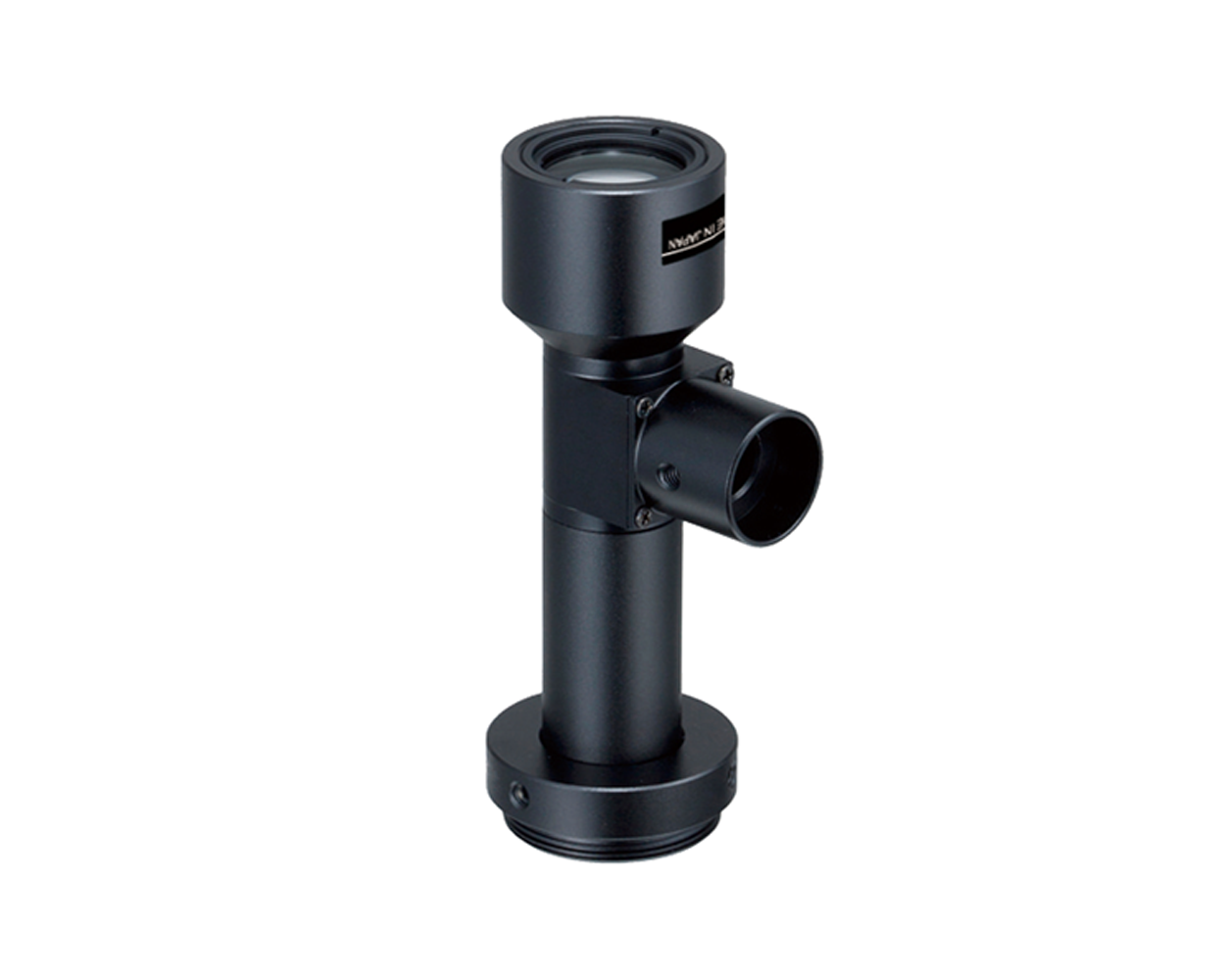

TEC-M4065MPC
TEC-M4065MPC
2MP, 2/3" 65mm, Telecentric Lens, 4.0x magnification (C-Mount) w/ coaxial

Please sign up for an account if you want to save items!

TEC-M4065MP
TEC-M4065MP
2MP, 2/3" 65mm, Telecentric Lens, 4.0x magnification (C-Mount)

Please sign up for an account if you want to save items!

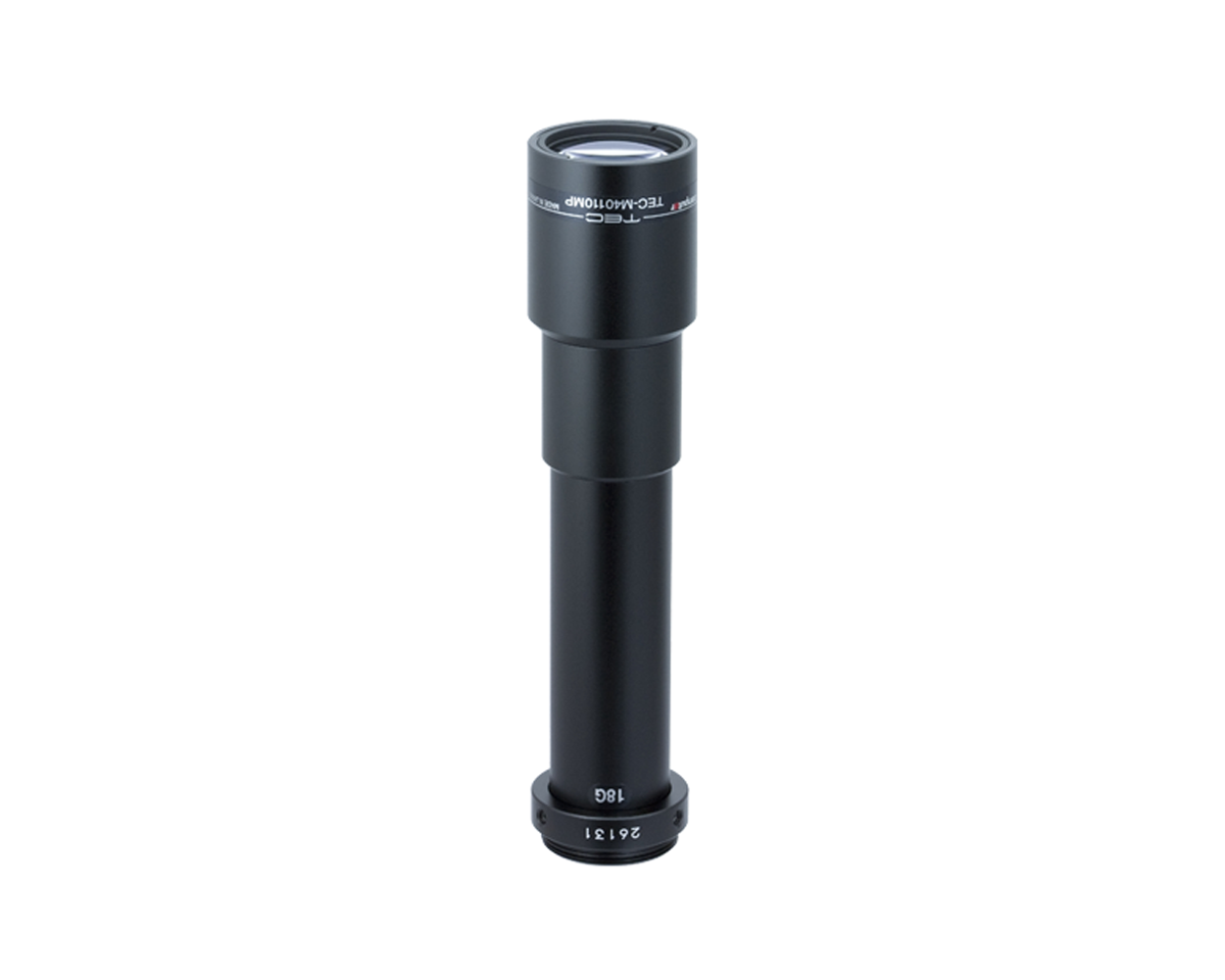

TEC-M40110MP
TEC-M40110MP
2MP, 2/3" 110mm, Telecentric Lens, 4.0x magnification (C-Mount)

Please sign up for an account if you want to save items!

TEC-M30110MPC
TEC-M30110MPC
2MP, 2/3" 110mm, Telecentric Lens, 3.0x magnification (C-Mount) w/ coaxial

Please sign up for an account if you want to save items!

TEC-M40110MPC
TEC-M40110MPC
2MP, 2/3" 110mm, Telecentric Lens, 4.0x magnification (C-Mount) w/ coaxial

Please sign up for an account if you want to save items!

TEC-M30110MP
TEC-M30110MP
2MP, 2/3" 110mm, Telecentric Lens, 3.0x magnification (C-Mount)

Please sign up for an account if you want to save items!

TEC-M2065MP
TEC-M2065MP
2MP, 2/3" 65mm, Telecentric Lens, 2.0x magnification (C-Mount)

Please sign up for an account if you want to save items!

TEC-M2065MPC
TEC-M2065MPC
2MP, 2/3" 65mm, Telecentric Lens, 2.0x magnification (C-Mount) w/ coaxial

Please sign up for an account if you want to save items!

TEC-M20110MPC
TEC-M20110MPC
2MP, 2/3" 110mm, Telecentric Lens, 2.0x magnification (C-Mount) w/ coaxial

Please sign up for an account if you want to save items!

TEC-M20110MP
TEC-M20110MP
2MP, 2/3" 110mm, Telecentric Lens, 2.0x magnification (C-Mount)

Please sign up for an account if you want to save items!

TEC-M15110MP
TEC-M15110MP
2MP, 2/3" 110mm, Telecentric Lens, 1.5x magnification (C-Mount)

Please sign up for an account if you want to save items!

TEC-M15110MPC
TEC-M15110MPC
2MP, 2/3" 110mm, Telecentric Lens, 1.5x magnification (C-Mount) w/ coaxial

Please sign up for an account if you want to save items!

TEC-M1065MPC
TEC-M1065MPC
2MP, 2/3" 65mm, Telecentric Lens, 1.0x magnification (C-Mount) w/ coaxial

Please sign up for an account if you want to save items!

TEC-M0865MPC
TEC-M0865MPC
2MP, 2/3" 65mm, Telecentric Lens, 0.8x magnification (C-Mount) w/ coaxial

Please sign up for an account if you want to save items!

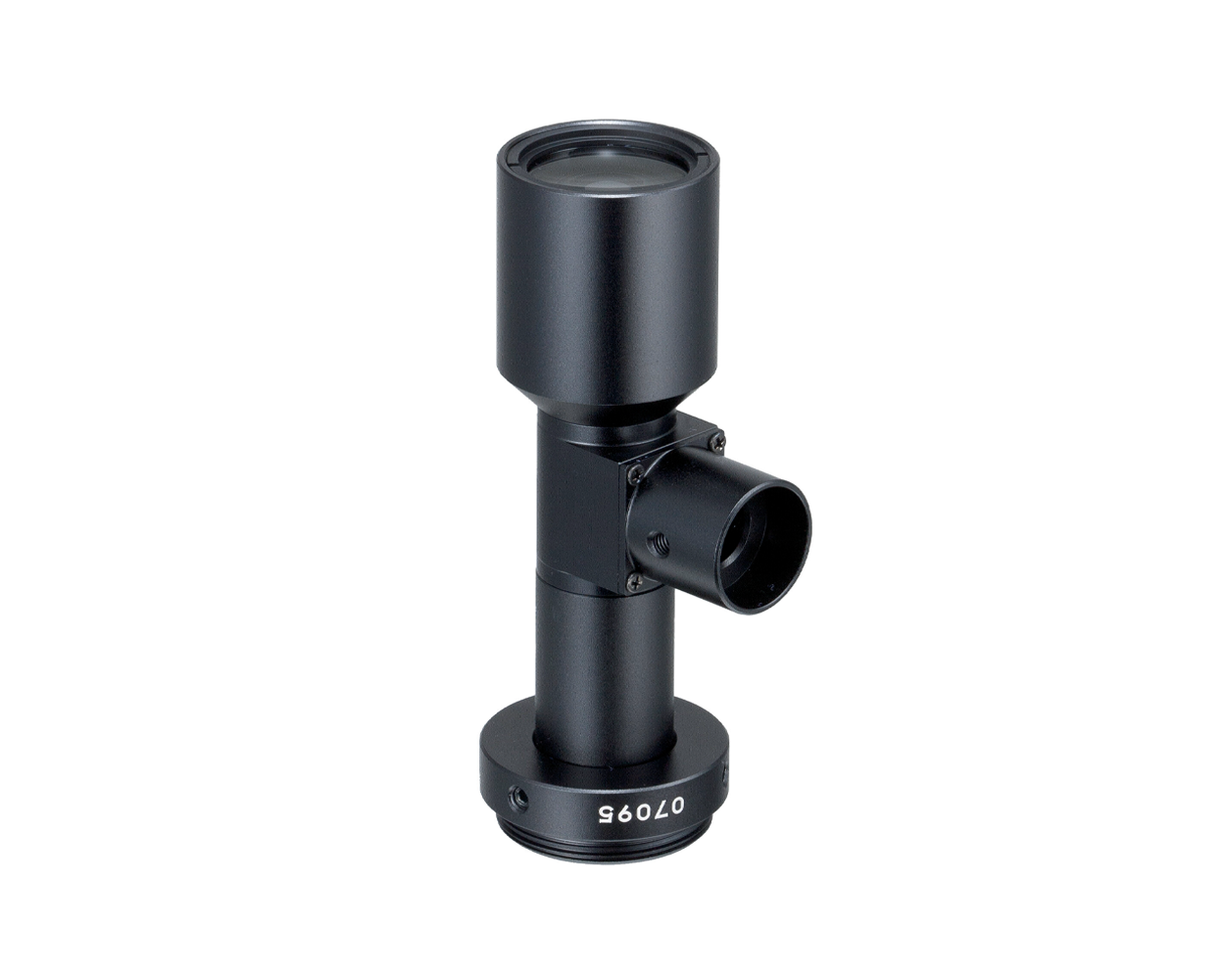

TEC-M1065MP
TEC-M1065MP
2MP, 2/3" 65mm, Telecentric Lens, 1.0x magnification (C-Mount)

Please sign up for an account if you want to save items!

TEC-M10110MP
TEC-M10110MP
2MP, 2/3" 110mm, Telecentric Lens, 1.0x magnification (C-Mount)

Please sign up for an account if you want to save items!

TEC-M10110MPC
TEC-M10110MPC
2MP, 2/3" 110mm, Telecentric Lens, 1.0x magnification (C-Mount) w/ coaxial

Please sign up for an account if you want to save items!

TEC-M0865MP
TEC-M0865MP
2MP, 2/3" 65mm, Telecentric Lens, 0.8x magnification (C-Mount)

Please sign up for an account if you want to save items!

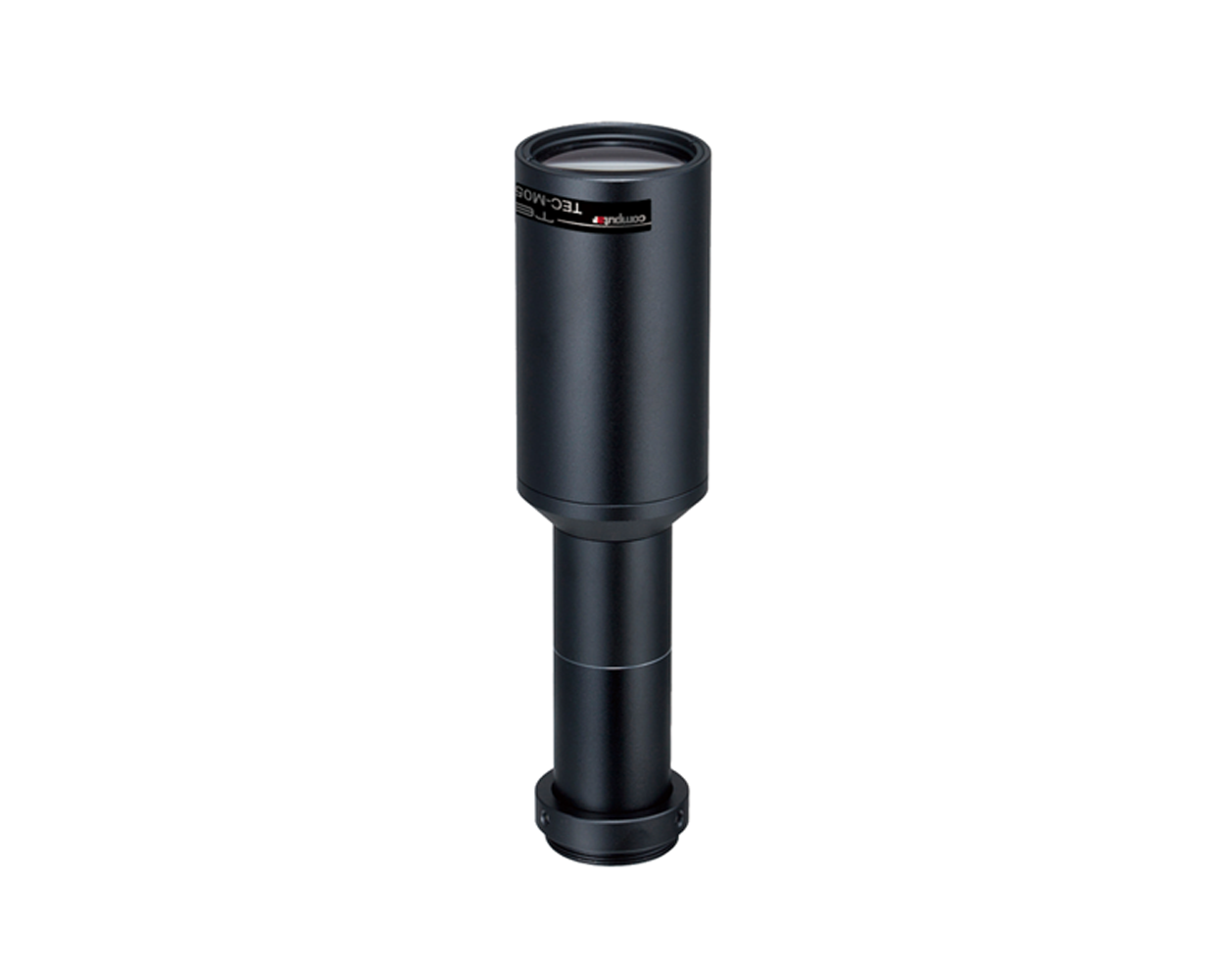

TEC-M08110MP
TEC-M08110MP
2MP, 2/3" 110mm, Telecentric Lens, 0.8x magnification (C-Mount)

Please sign up for an account if you want to save items!

TEC-M05110MP
TEC-M05110MP
2MP, 2/3" 110mm, Telecentric Lens, 0.5x magnification (C-Mount)

Please sign up for an account if you want to save items!

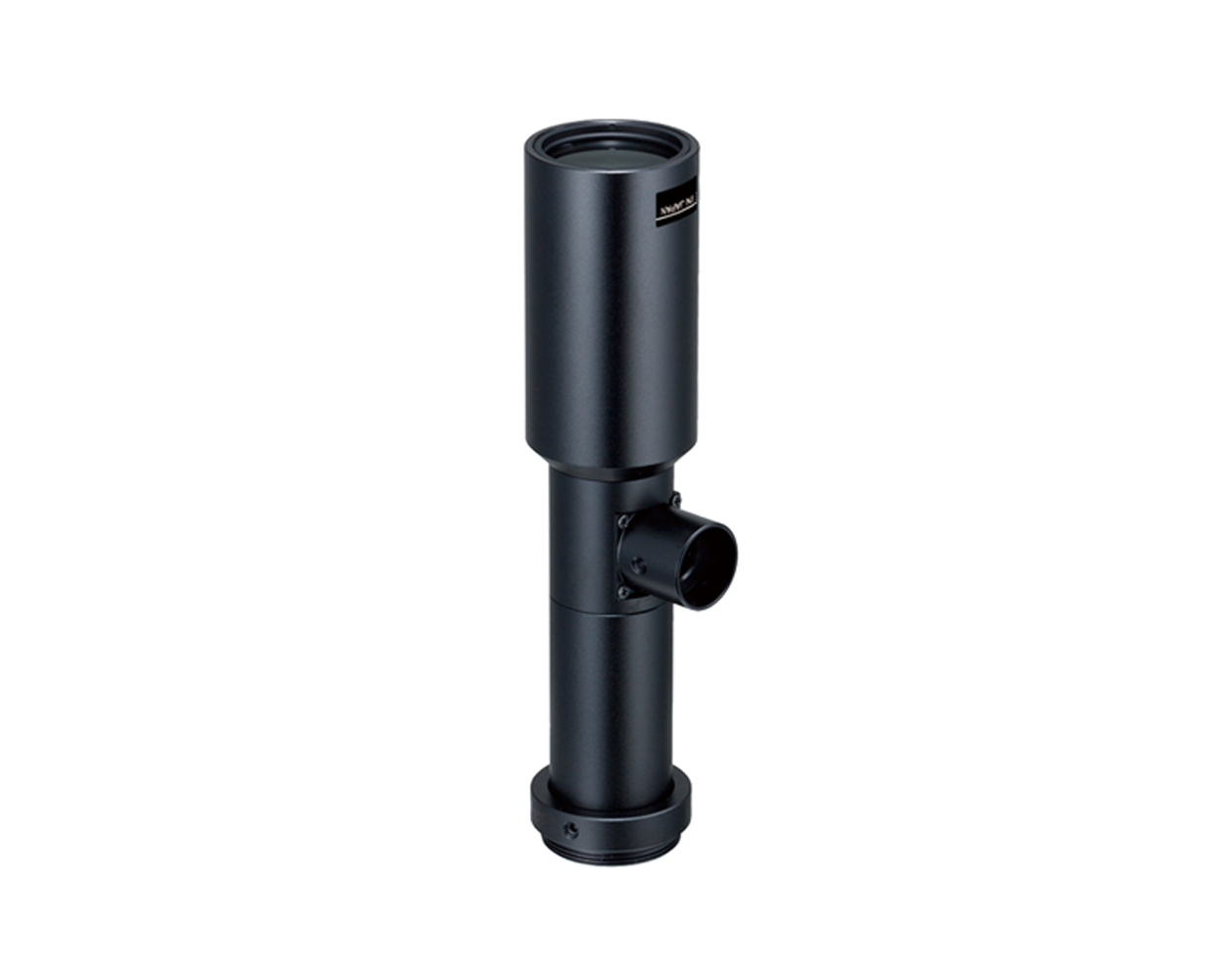

TEC-M08110MPC
TEC-M08110MPC
2MP, 2/3" 110mm, Telecentric Lens, 0.8x magnification (C-Mount) w/ coaxial

Please sign up for an account if you want to save items!

TEC-M0565MPC
TEC-M0565MPC
2MP, 2/3" 65mm, Telecentric Lens, 0.5x magnification (C-Mount) w/ coaxial

Please sign up for an account if you want to save items!

TEC-M0565MP
TEC-M0565MP
2MP, 2/3" 65mm, Telecentric Lens, 0.5x magnification (C-Mount)

Please sign up for an account if you want to save items!

TEC-M05110MPC
TEC-M05110MPC
2MP, 2/3" 110mm, Telecentric Lens, 0.5x magnification (C-Mount) w/ coaxial

Please sign up for an account if you want to save items!

TEC-M03110MPC
TEC-M03110MPC
2MP, 2/3" 110mm, Telecentric Lens, 0.3x magnification (C-Mount) w/ coaxial

Please sign up for an account if you want to save items!

TEC-M03110MP
TEC-M03110MP
2MP, 2/3" 110mm, Telecentric Lens, 0.3x magnification (C-Mount)

Please sign up for an account if you want to save items!

TEC-55
TEC-55
2/3" 55mm F2.8 Telecentric Lens (C-Mount)

Please sign up for an account if you want to save items!

A4Z1214CS-MPIR
A4Z1214CS-MPIR
3MP, 1/2.7" 12.5-50mm F1.4 Varifocal Lens, HD Series, Manual iris, IR corrected (CS-Mount)

Please sign up for an account if you want to save items!

A4Z2812CS-MPIR
A4Z2812CS-MPIR
3MP, 1/2.7”, 2.8-10mm, F1.2 Varifocal Lens, Manual Iris w/ IR corrected (CS-Mount)

Please sign up for an account if you want to save items!

AG4Z1214FCS-MPIR
AG4Z1214FCS-MPIR
3MP, 1/2.7" 12.5-50mm F1.4 Varifocal Lens, HD Series, DC Auto-iris IR corrected (CS-Mount)

Please sign up for an account if you want to save items!

AG4Z1214KCS-MPIR
AG4Z1214KCS-MPIR
3MP, 1/2.7" 12.5-50mm F1.4 Varifocal Lens, HD Series, P-iris IR corrected (CS-Mount)

Please sign up for an account if you want to save items!

M6Z1212-3S
M6Z1212-3S
2/3" 12.5-75mm f1.2 6X Manual Zoom, Manual Iris with locking set screws (C-Mount)

Please sign up for an account if you want to save items!

MLH-10X
MLH-10X
1/2" 13-130mm 10X Close-up Manual Zoom, Manual Iris (C-Mount)

Please sign up for an account if you want to save items!

MLM3X-MP
MLM3X-MP
2/3" 3.3X Manual Zoom, Focus & Iris lens, Macro Type (90mm W.D.), Low Distortion, 1.5 Megapixel Rated (C-Mount)

Please sign up for an account if you want to save items!

TEC-V7X
TEC-V7X
5MP, 1.1" 7x Macro Zoom Telecentric Lens (C-mount)
